Go画图的包

今天看到了一个golang画图的包gg，感觉挺有意思的。

安装

go get -u github.com/fogleman/gg

使用

示例1：画一个圆

dc := gg.NewContext(1000, 1000)
dc.DrawCircle(500, 500, 400)
dc.SetRGB(0, 0, 0)
dc.Fill()
dc.SavePNG("out.png")

会在当前文件夹下生成out.png文件

示例2

const S = 1024
dc := gg.NewContext(S, S)
dc.SetRGBA(0, 0, 0, 0.1)
for i := 0; i < 360; i += 15 {
        dc.Push()
        dc.RotateAbout(gg.Radians(float64(i)), S/2, S/2)
        dc.DrawEllipse(S/2, S/2, S*7/16, S/8)
        dc.Fill()
        dc.Pop()
}
dc.SavePNG("out1.png")

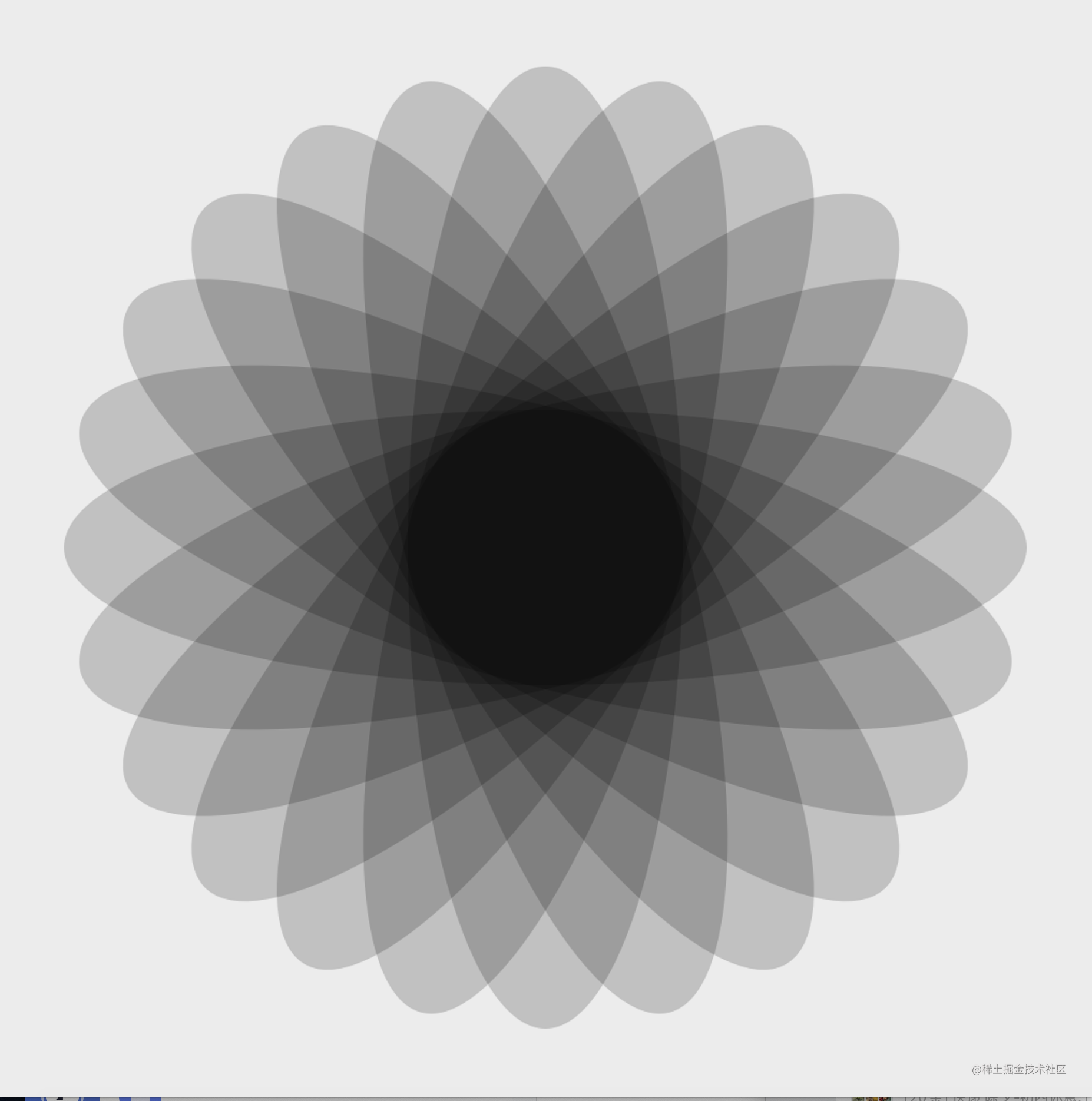

生成的图片：

接口

Creating Contexts

There are a few ways of creating a context.

NewContext(width, height int) *Context
NewContextForImage(im image.Image) *Context
NewContextForRGBA(im *image.RGBA) *Context

Drawing Functions

Ever used a graphics library that didn't have functions for drawing rectangles or circles? What a pain!
DrawPoint(x, y, r float64)
DrawLine(x1, y1, x2, y2 float64)
DrawRectangle(x, y, w, h float64)
DrawRoundedRectangle(x, y, w, h, r float64)
DrawCircle(x, y, r float64)
DrawArc(x, y, r, angle1, angle2 float64)
DrawEllipse(x, y, rx, ry float64)
DrawEllipticalArc(x, y, rx, ry, angle1, angle2 float64)
DrawRegularPolygon(n int, x, y, r, rotation float64)
DrawImage(im image.Image, x, y int)
DrawImageAnchored(im image.Image, x, y int, ax, ay float64)
SetPixel(x, y int)

MoveTo(x, y float64)
LineTo(x, y float64)
QuadraticTo(x1, y1, x2, y2 float64)
CubicTo(x1, y1, x2, y2, x3, y3 float64)
ClosePath()
ClearPath()
NewSubPath()

Clear()
Stroke()
Fill()
StrokePreserve()
FillPreserve()

Text Functions

It will even do word wrap for you!

DrawString(s string, x, y float64)
DrawStringAnchored(s string, x, y, ax, ay float64)
DrawStringWrapped(s string, x, y, ax, ay, width, lineSpacing float64, align Align)
MeasureString(s string) (w, h float64)
MeasureMultilineString(s string, lineSpacing float64) (w, h float64)
WordWrap(s string, w float64) []string
SetFontFace(fontFace font.Face)
LoadFontFace(path string, points float64) error

Color Functions

Colors can be set in several different ways for your convenience.

SetRGB(r, g, b float64)
SetRGBA(r, g, b, a float64)
SetRGB255(r, g, b int)
SetRGBA255(r, g, b, a int)
SetColor(c color.Color)
SetHexColor(x string)

Stroke & Fill Options

gg supports linear, radial and conic gradients and surface patterns. You can also implement your own patterns.

SetFillStyle(pattern Pattern)
SetStrokeStyle(pattern Pattern)
NewSolidPattern(color color.Color)
NewLinearGradient(x0, y0, x1, y1 float64)
NewRadialGradient(x0, y0, r0, x1, y1, r1 float64)
NewConicGradient(cx, cy, deg float64)
NewSurfacePattern(im image.Image, op RepeatOp)

ransformation Functions

Identity()
Translate(x, y float64)
Scale(x, y float64)
Rotate(angle float64)
Shear(x, y float64)
ScaleAbout(sx, sy, x, y float64)
RotateAbout(angle, x, y float64)
ShearAbout(sx, sy, x, y float64)
TransformPoint(x, y float64) (tx, ty float64)
InvertY()

Stack Functions

Save and restore the state of the context. These can be nested.

Push()
Pop()

Clipping Functions

Use clipping regions to restrict drawing operations to an area that you defined using paths.

Clip()
ClipPreserve()
ResetClip()
AsMask() *image.Alpha
SetMask(mask *image.Alpha)
InvertMask()

Helper Functions

Sometimes you just don’t want to write these yourself.

Radians(degrees float64) float64
Degrees(radians float64) float64
LoadImage(path string) (image.Image, error)
LoadPNG(path string) (image.Image, error)
SavePNG(path string, im image.Image) error

更多信息请直接阅读源码

参考

[1]gg
